Ubiquiti UniFi wireless Dream Machine | UDM-US, single band

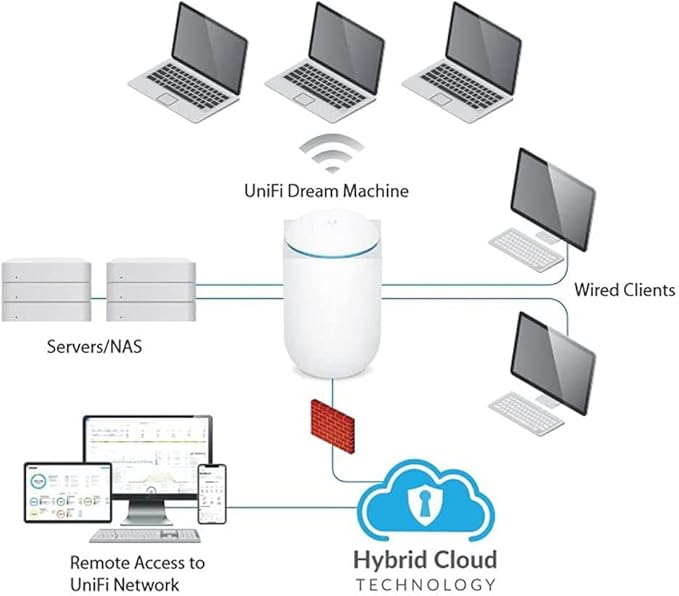

The Ubiquiti UniFi Dream Machine (UDM-US) is an all-in-one network console designed to introduce professional enterprise-grade networking to homes and small businesses. This sleek, pill-shaped console unifies an advanced security gateway firewall, a managed 4-port Gigabit switch, and a high-performance 802.11ac Wave 2 access point into a single elegant desktop device. Powered by a robust 1.7 GHz quad-core processor, the Dream Machine runs the integrated UniFi Network Controller software out of the box, allowing you to intuitively monitor traffic, manage guest isolation, and scale your network seamlessly with additional UniFi hardware. (Note: Though retail search titles occasionally tag this US model variant as "single band", the UDM natively utilizes concurrent dual-band technology to maximize wireless throughput).
Processor & Hardware: Quad-core Arm® Cortex® A57 processor clocked at 1.7 GHz.
System Memory & Onboard Storage: 2 GB DDR RAM paired with 16 GB on-board Flash storage.
Wireless Standards: Simultaneous Dual-Band Wi-Fi 5 (802.11ac Wave 2), backward compatible with 802.11a/b/g/n.
Wireless Radio Rates: Up to 1733 Mbps on the 5 GHz band (4x4 MU-MIMO) and up to 300 Mbps on the 2.4 GHz band (2x2 MIMO).

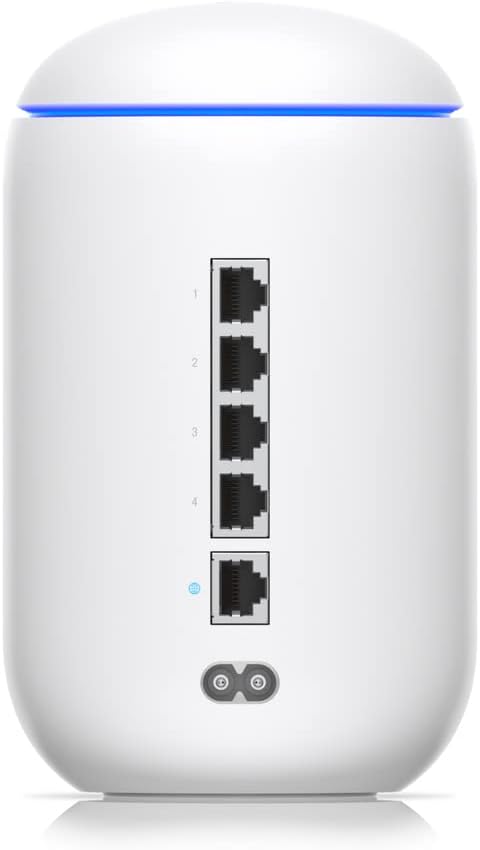

Wired Network Interfaces: 1× 10/100/1000 Mbps RJ45 WAN port and 4× 10/100/1000 Mbps RJ45 managed LAN ports.
Antenna Configuration: 1× High-performance Dual-Band, Quad-Polarity internal antenna assembly.
Security & Firewall Features: Advanced Threat Management with signature-based IDS/IPS (~850 Mbps throughput), DPI, and content filtering.
Wireless Encryption: Support for WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), and 802.11w/PMF.
Power Parameters: Internal AC/DC 50W power supply accepting a universal input of 100V–240V AC.
Physical Dimensions: 4.33 inches diameter × 7.25 inches height (110 mm × 184.2 mm).
Device Management: Managed via local Ethernet connection, Bluetooth pairing, or remotely via the UniFi Network mobile app.
