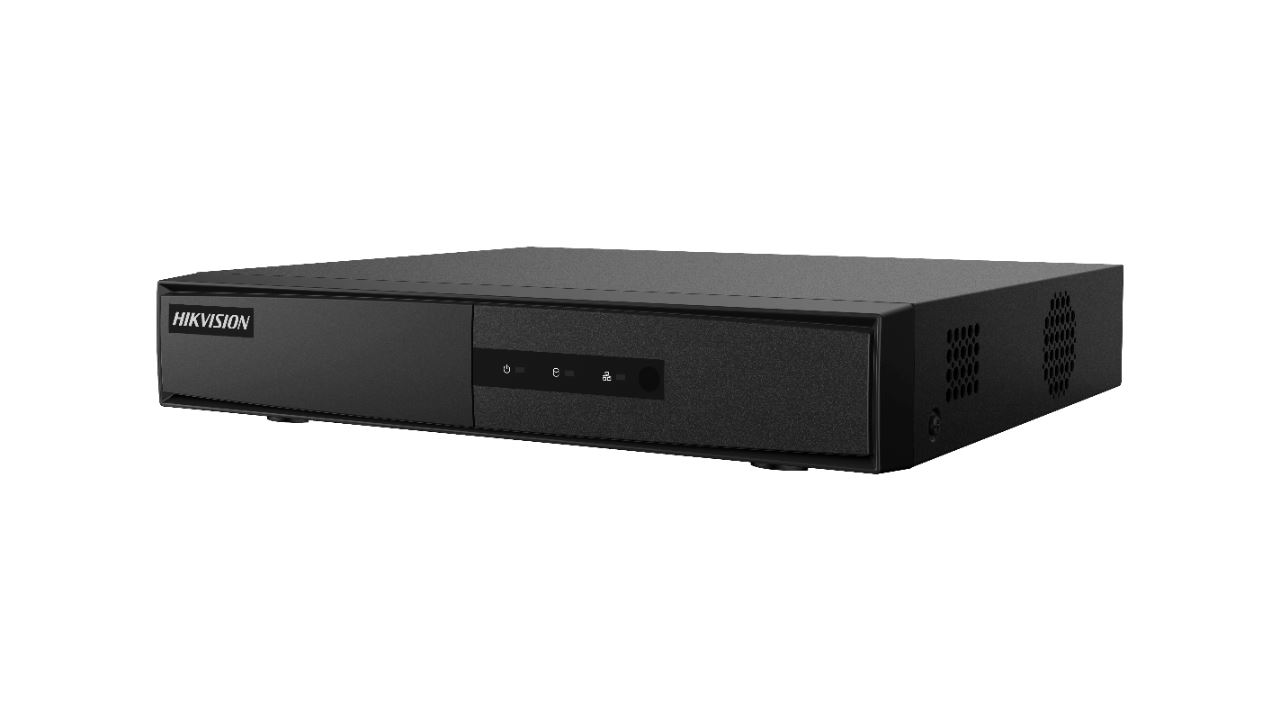

Hikvision Aldua DVR 4 Channel 1080p Full HD (Ds-7204hghi-f1) - Black
The Hikvision DS-7204HGHI-F1 Turbo HD DVR is a reliable, 4-channel hybrid digital video recorder designed to anchor small-scale, cost-effective security surveillance systems. Housed in a compact 1U black metal casing, this versatile hybrid unit offers Penta-brid adaptive access, supporting HD-TVI, AHD, CVI, traditional CVBS analog, and IP cameras simultaneously. It achieves smooth recording at 1080p Lite resolution across all analog channels, utilizing Hikvision's H.264+ high-efficiency compression technology to slash bitrates and bandwidth requirements while significantly doubling local hard drive storage efficiency.
Video Input Channels: 4× physical BNC analog interface ports + 1× dedicated IP camera channel (up to 5 channels total via network extension).Hybrid Camera Compatibility: Adaptively integrates HDTVI, AHD, CVI, CVBS (Analog), and IP signals.Encoding & Playback Resolution: Supports 1080p Lite, 720p, WD1, 4CIF, VGA, and CIF resolutions at up to 25/30 fps.Video Compression Codecs: Smart H.264+ and standard H.264 dual-stream encoding profiles.Audio Interfacing Features: 1× RCA physical audio input and 1× RCA audio output, along with support for 4-channel audio-over-coaxial cabling configurations.Video Output Hardware: 1× HDMI port and 1× VGA port executing concurrent outputs up to 1920 × 1080p HD resolution.Local Storage Storage Expansion: 1× Internal SATA hard disk interface holding up to a 6 TB HDD capacity.Network & Management Ports: 1× RJ45 10M/100M self-adaptive Ethernet port with remote access via Hik-Connect cloud service app.Hardware Auxiliary Interface: 2× USB 2.0 rear panel connectivity ports for navigation mouse or data backup extraction.Physical Dimensions: 260 mm × 222 mm × 45 mm (10.2 × 8.7 × 1.8 inches) weighing under 1.0 kg without an internal drive.
